CNC Milling Controller: 1) Scanning Function & Follow Mode & Auto Tool Setter/Probe 2) 64 mb memory,56 mb user store room 3) 32 bits ARM microprocessor+FPGA Technology 4) Support RTCP mode

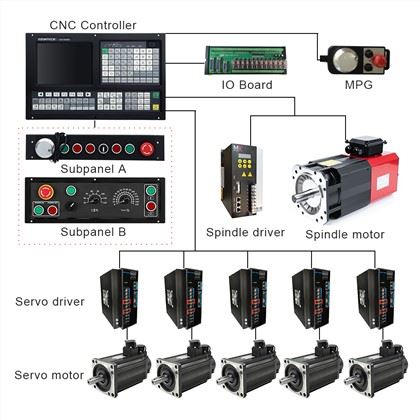

PLC+ATC 5 Axis Cnc Milling Controller


CNC Milling Controller: 1) Scanning Function & Follow Mode & Auto Tool Setter/Probe 2) 64 mb memory,56 mb user store room 3) 32 bits ARM microprocessor+FPGA Technology 4) Support RTCP mode
Send Inquiry





_20220707145050

Number of control axes5 axes
Minimum programming0.001mm
Maximum programming± 99999.999mm
Top speed30m / min
Feed speed0.001-15m / min
Manual continuousOne axis or simultaneous multi-axis
Screen saver functionScreen saver function
Program editingMale / English, relative / absolute programming
Pre-reading functionShort line preprocessing 10,000 lines
Compensation functionKnife compensation, between compensation, screw compensation, radius compensation
Communication functionRS232, U disk interface
Program editingMale / English, relative / absolute programming

Tool functions:

1)Tool length compensation
2)Tool point radius compensation (C type)

Password protectionMulti-level password protection
Handwheel functionsPanel type, plug-in hand-held


1) Electric Turret & Binary code turret,Max: 99 pcs tools

2) Support ATC , Macro function and PLC function

3) Max speed is 60m/min, feeding speed is 24m/min,0.1um control precision

4) Adapted servo spindle can realize spindle continous position,rigid tapping,rigid screw processing


Spindle axis functions:
1) Two channels 0V ~ 10V analog voltage output, support double spindle control
2) Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
3) Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)


Tool functions:
1)Tool length compensation
2)Tool point radius compensation (C type)


Application : CNC Milling & Drilling Machinery and specially automatic equipment



1.-&(1000MC)(1)

3.-(1000MC)

4.-&(1000MC)

GH-1000TC

Multiple function:

It can realize the drilling/boring,roughing of roungroove / rectanglegroove ,finishing of full circle /rectangle, continous drilling of straight line /rectangle /arc etc.


7.-()
