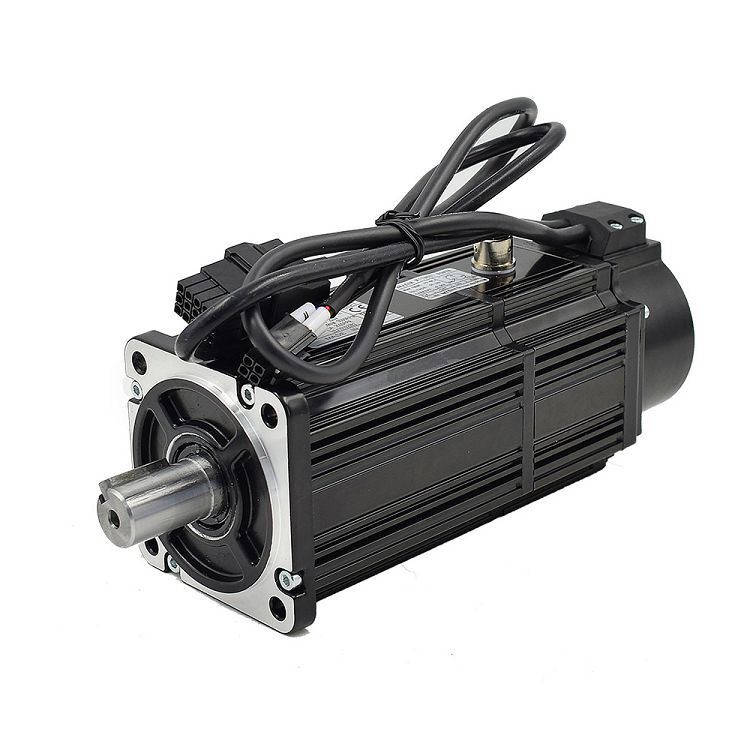

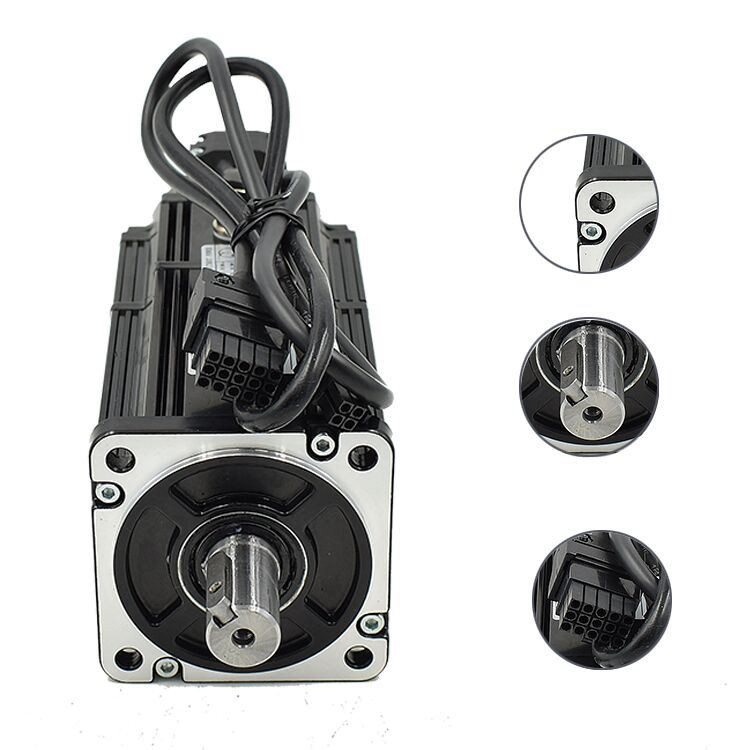

GH-06060DC 600W SERVO MOTOR is 600W servo motor,1.91NM,3000RPM, it can working with high precision servo drivers.Imported feedback components, original imported low-noise motor.

Mini AC Servo 600W 1.9Nm


GH-06060DC 600W SERVO MOTOR is 600W servo motor,1.91NM,3000RPM, it can working with high precision servo drivers.Imported feedback components, original imported low-noise motor.
Send Inquiry

Mini AC Servo 600W 1.9Nm

`M8AR_2R@BHJ$0XG)NN0A40


Application

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment, robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.


Motor Model SZGH-06060DC
Rated Power(W)600
Rated Voltage(V)220
Rated Crrent(A) 3.5
Rated Speed(RPM) 3000
Rated Torque(NM)1.91
Peak Torque(NM)5.73
Voltage Constantv10r/min 34
Torque Coefficient(NM/A)0.55
Rotor Inertia（Kg.m²）0.39*10
Line-Line Resistance（Ω）1.93
Line-Line Inductance(mH) 10.7
Machanical Time-Constant(Ms)5.5
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65

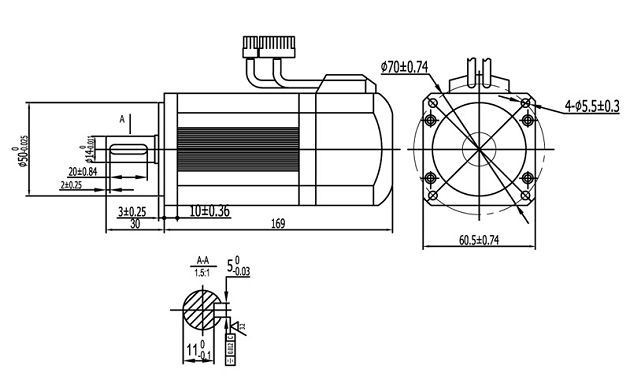

The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)2.07

9(001)



FAQ


Q: What’s is your shipping service?

A: We can provide services for vessel booking, goods consolidation, customs declaration, shipping documents preparation and delivery bulk at the shipping port.





Q: What’s your tem of the delivery?

A: Our ordinary delivery term is FOB SHENZHEN. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.


Send Inquiry

FAQ

The following are the common questions we have collected about CNC Controller.
1. Q: What services do you provide?
+
A: We offer one-stop service. We can customize the most suitable processing solution based on your ideas and product drawings. We have partnerships with major shipping companies such as DHL, FEDEX, and UPS to ensure timely delivery. Products can be delivered to you within 3-6 business days.
2. Q: What can you do for CNC machine tool retrofit and upgrade?
+
A: We can provide a complete CNC system. Our controller supports ATC and PLC and runs G-code. Support multiple languages, Russian, Spanish, English, Chinese, etc.The kit includes the controller, spindle servo motor and driver, servo motor drivers for each feed axis, and all standard cables, user manuals, and wiring diagrams. Our CNC control system is fully connected before shipment and tested 3-5 times for plug-and-play operation.
3. Q: What is your after-sales service like?
+
A: Our professional after-sales engineers provide 24-hour, one-on-one, free service. You don't have to worry about any after-sales issues.
4. Q: What optional accessories are available for CNC machine tools?
+
A: You can choose different accessories based on your machining needs. CNC Lathe:Servo turret, hydraulic chuck, manual chuck, Parts Catcher, Tailstock，guide bush,Flying knife disc,Tailstock,living tool,bar feeder, chip conveyor, etc. CNC Milling Machine: Fourth and fifth axis CNC rotary tables,Tailstock,BT30/BT40 holder, tool setters, probes, etc.
5.Q: How do you maintain the machine?
+
A: You must receive safety training before use. Regularly clean chips, check the air supply/oil pressure, lubricate the guideways, and inspect tool wear.
