3 Phase 50W 0.16Nm 3000r/min Servo Motor
Our main products includes stepper motors, closed loop system, gear reducer stepper motor, linear stepper motor, brake stepper motor, stepper drivers,servo motor, controller board, spindles, power supplys, and other accessories.
Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.
Features
GH-04005D 50W SERVO MOTOR GH-04005D is 50W ac servo motor , high speed, high precision,low motor noise and low heating performance, while at the cost of normal servo systems.

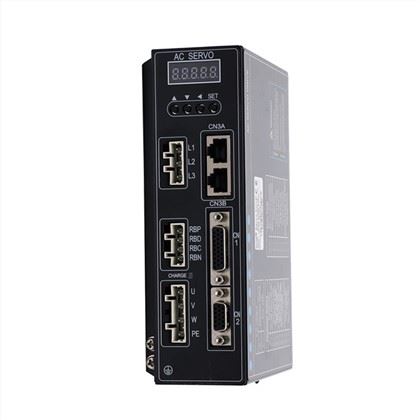

The match servo driver,gh-sd2004 ,that matching for 50W servo motor.
There is also one dual servo driver, GH-202,that can control two pcs of 50W servo motors synchronously.
Application

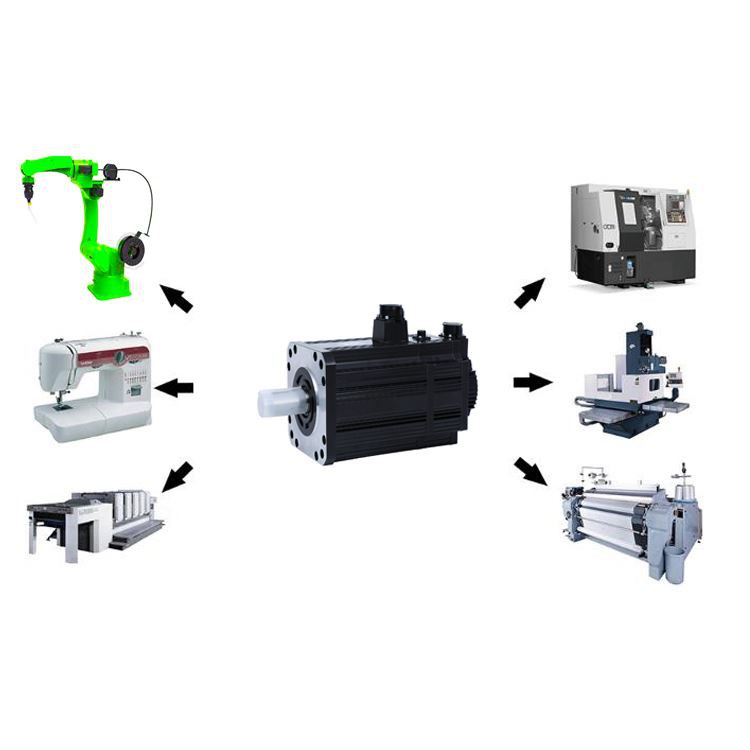

CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.
| Motor Model | SZGH-04005D |
| Rated Power(W) | 50 |
| Rated Voltage(V) | 220 |
| Rated Crrent(A) | 0.4 |
| Rated Speed(RPM) | 3000 |
| Rated Torque(NM) | 0.16 |
| Peak Torque(NM) | 0.32 |
| Voltage Constantv10r/min | 36.8 |
| Torque Coefficient(NM/A) | 0.4 |
| Rotor Inertia（Kg.m²） | 0.025*10 |
| Line-Line Resistance（Ω） | 108 |
| Line-Line Inductance(mH) | 108 |
| Machanical Time-Constant(Ms) | 1 |
| Encoder Resolution(PPR) | 2500 |
| Insulation Class | Class B |
| Safety Class | IP65 |
| The Operating of Evironmental Condition | Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing) |
FAQ
Q: May I know what’s the nearest airport from your company?
A: First shenzhen Airport,,then guangzhou or huizhou airport,welcome to visit us.
Q: When can I get the quotation?
A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.
Q: What about the lead time for mass production?
A: 6-8 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.
Q: What’s your tem of the delivery?
A: Our ordinary delivery term is FOB SHENZHEN. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air and by express.
Q: What’s your after-sale service?
A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.
If you have another question, pls feel free to contact us as below
