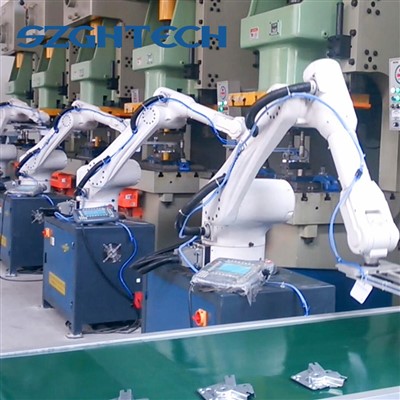

The pick-up robot is an automated material handling system that autonomously picks up workpieces from the storage area and places them on the production line.

Loading And Unloading Robot


The pick-up robot is an automated material handling system that autonomously picks up workpieces from the storage area and places them on the production line.
Send Inquiry

Product Description

The pick-up robot is an automated material handling system that autonomously picks up workpieces from the storage area and places them on the production line.

1) The robot system has the characteristics of high efficiency, precision and reliability, which can greatly improve production efficiency, reduce labor costs and reduce material loss.

2) The loading and unloading robot adopts advanced machine vision technology and control algorithms, which can automatically identify and grasp workpieces of various shapes and weights according to real-time changing production needs, and complete handling and placement in a very short time.

3) The robot system is equipped with multiple safety functions such as safety sensors and emergency stop switches to ensure the safety of operators and machines.

4) Loading and unloading robots are suitable for various manufacturing fields, such as automotive, electronics, food and other industries.

5) It works seamlessly with other equipment on the production line for a fully automated production process.

6) The programmability and flexibility of the robot also make it have the ability to adapt to different production needs, which can be modified and upgraded at any time.



Packing list :
1. robot 4 axis cnc controller 1 sets
2. 30 KG payload 1850MM handing  robot arm
3. Electrical cabinet
5. Operation manual, cable required
6. Servo motor, driver and cable



product-546-410 Payload 30kg
Reach 1850mm
Axes  4 axes
Application  Materials handling, parts transfer, palletizing, deburring &cutting
Special Service 1. We can customize the standard color as you need!
2. We can customize your company logo!
After Warran Video technical supports , Online supports



Product parameter(specification)

Arm Axis 1 Axis 2 Axis 3 Axis 4
Max motion range ±170° +80°/-25° +80°1-25° ±360°
Max speed 148°/sec 148°/sec 148°/sec 222°/sec



product features

  • Large working space: The arm length of this robot is 1850mm, which can cover a large working space, suitable for large production lines and storage systems.
  • High precision: The robot adopts advanced sensors and control algorithms, has high-precision positioning and grasping capabilities, and can complete delicate handling and assembly tasks.
  • High load capacity: The robot has a high load capacity and can withstand a maximum material weight of 20 kg.
  • Strong flexibility: The robot's arm can rotate 360 degrees without dead angles, and can adapt to different angles and directions of work scenarios, with strong flexibility and adaptability.
  1. Easy to operate: The robot is equipped with a humanized control interface and operation guide, which is convenient for operators to quickly get started, and has one-button automatic operation and debugging functions, simplifying the operation process.



Applications（strong adaptability and flexibility, and can provide efficient, accurate and reliable material handling services for various manufacturing fields）

1. Automotive manufacturing: It can be used for the handling and assembly of parts on the automotive production line.

2. Electronic manufacturing: can be used for the assembly, packaging and handling of electronic components.

product-1000-1000

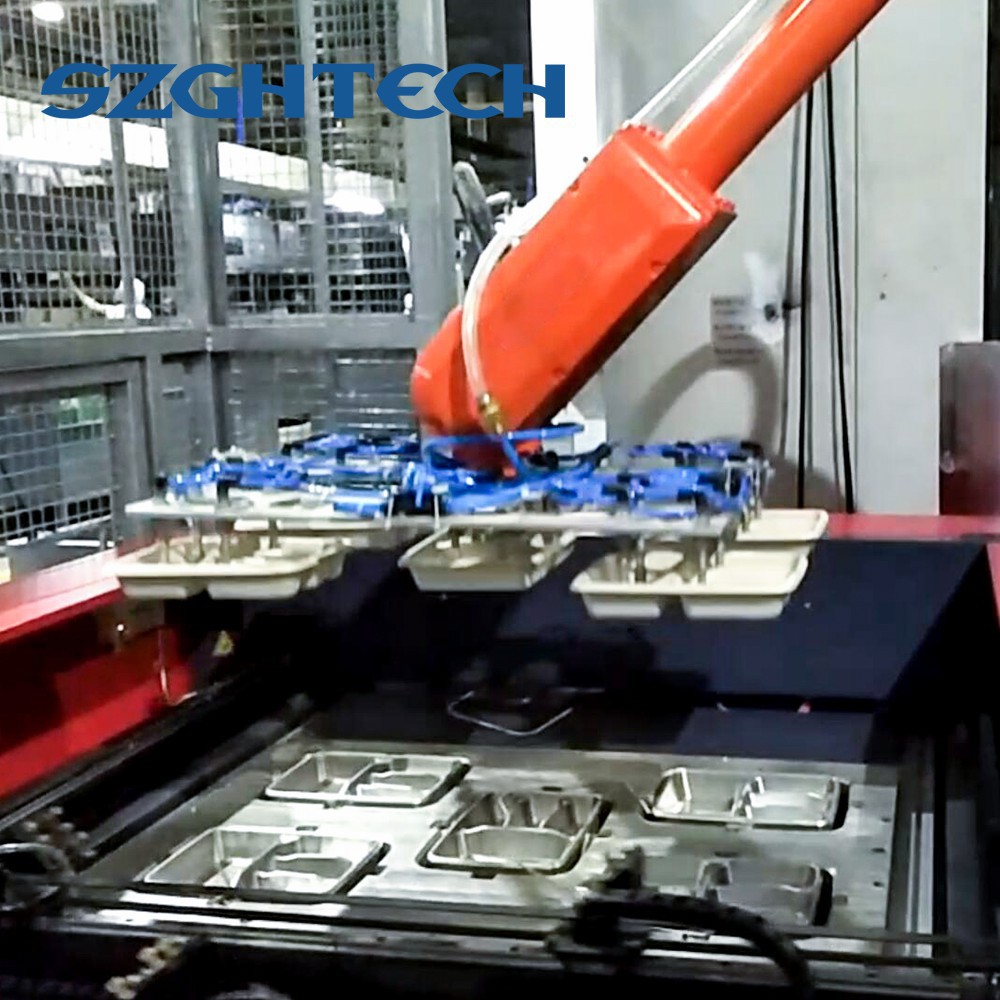

3. Food processing industry: can be used for raw material handling and packaging on food processing lines.

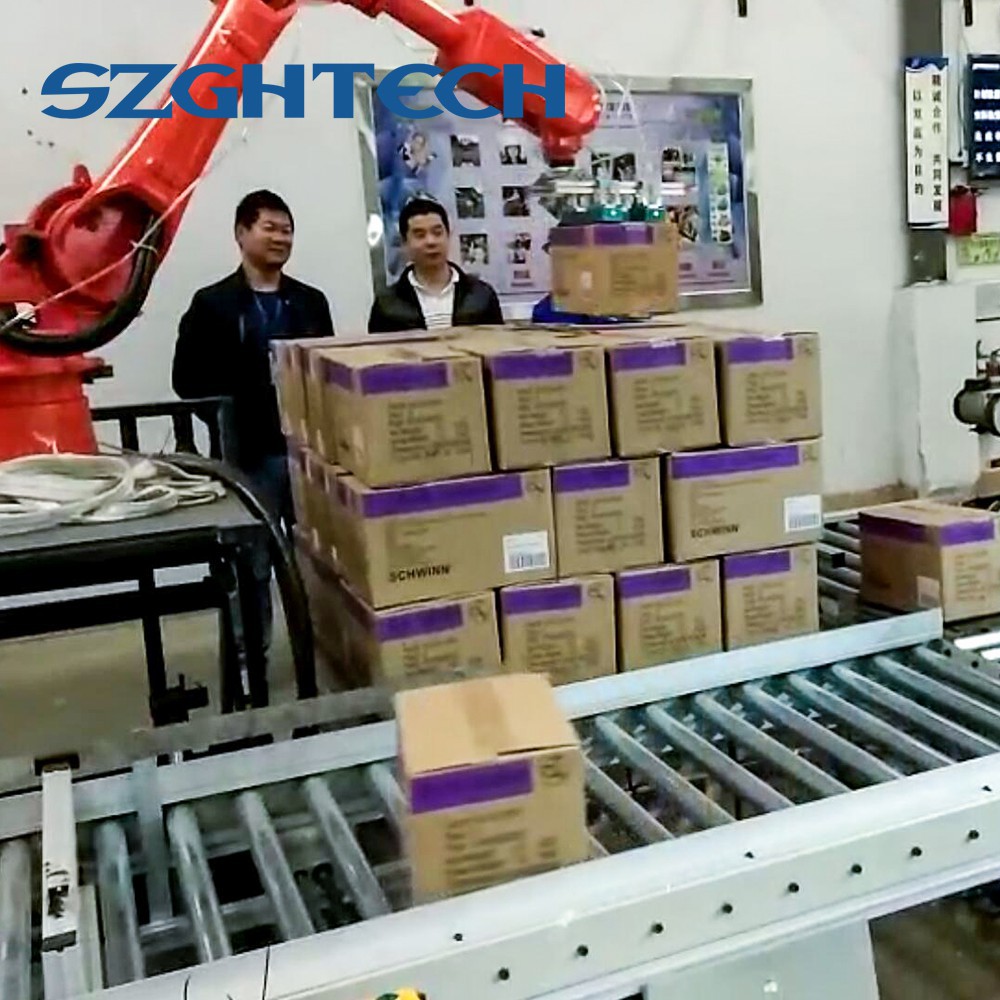

4. Warehousing and logistics industry: It can be used for tasks such as loading and unloading and stacking of goods.

product-1000-1000



Installation Guarantee

（1）Ensure human safety: When the robot is running, people need to be prohibited from entering its operating area. Operators need to wear appropriate personal protective equipment, such as safety helmets, safety shoes, gloves, etc., to ensure the safety of personnel



（2）Comply with operating procedures: Operators should operate in accordance with robot operating procedures, strictly abide by the operation steps and precautions, and prevent misoperation or omission.



（3）Keep the equipment clean: The operator should clean and maintain the robot frequently to ensure that the equipment is in good working condition and avoid safety problems caused by equipment failure.



（4）Regular inspection of equipment: Operators need to regularly inspect the robot's critical components and safety systems to ensure its proper operation and reliability.



（5）Shutdown protection: Operators need to stop in time when the robot fails or abnormal situations, and take necessary safety measures to avoid accidents.



（6）Power failure protection: When maintaining, maintaining or debugging the robot, the operator needs to cut off the power supply first and carry out corresponding operational measures to ensure the safety of personnel and equipment.



（7）Record maintenance records in time: Operators need to record the maintenance, maintenance and fault handling of robots in time for future maintenance and management.



Send Inquiry

FAQ

The following are the common questions we have collected about Robot Arm.
Q1. What materials can robotic laser welding handle?
+
A1:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q2. How precise do the parts need to be?
+
A2:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q3. Why choose robotic laser welding over MIG or TIG?
+
A3:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q4. What materials can robotic laser welding handle?
+
A4:Robotic laser welding works excellently on carbon steel, stainless steel, and titanium. It can also weld aluminum and copper, but these highly reflective materials require more powerful lasers and precise parameter control to overcome their reflective nature.
Q5. How precise do the parts need to be?
+
A5:Extremely precise. Laser welding focuses energy on a tiny spot, so gaps between parts must be minimal. High-precision fixtures are mandatory to hold parts perfectly, as even a small gap can lead to burn-through or a weak weld.
Q6. Why choose robotic laser welding over MIG or TIG?
+
A6:Choose it for speed, precision, and minimal heat. It's significantly faster than TIG and MIG, creates very narrow welds, and puts so little heat into the part that there is almost no distortion. It is ideal for high-volume, high-quality applications where aesthetics and part integrity are critical.
Q7: How can robotic TIG welding solve my challenges with consistent, high-integrity welds on critical components?
+
A7: Human fatigue and subtle variations are the biggest enemies of perfect welds. Our robotic Tig welding systems eliminate this. The robot precisely repeats the exact same arc length, travel speed, and filler metal placement every single time. This means: Zero Defects: Drastically reduces porosity, undercut, and inconsistencies. Perfect Penetration: Ensures optimal weld penetration for maximum strength, which is crucial for aerospace, medical, or automotive applications. Flawless Aesthetics: Delivers a clean, shiny, and uniform bead that requires little to no post-weld finishing, enhancing the value of your product.
Q8: My current welding process is too slow and expensive. How does robotic TIG welding provide a fast Return on Investment (ROI)?
+
A8: While manual TIG is slow and skill-dependent, automation transforms your cost structure. The ROI comes from multiple streams: Dramatically Higher Throughput: The robot works 24/7 without breaks, welding significantly faster than even the most skilled human. Massive Material Savings: Precise control means you use exactly the right amount of expensive filler metal and shielding gas, eliminating waste. Reduced Rework & Scrap: Superior consistency means you spend less time and money fixing bad welds or scrapping expensive parts. Most of our clients see a full ROI in under 12 months.
Q9: My production involves complex parts and short runs. Isn't robotic welding only for high-volume, simple tasks?
+
A9: That's a common myth! Modern robotic TIG cells are built for flexibility. With features like: Easy Programming: User-friendly touchscreen interfaces and lead-through teaching allow you to program complex paths in minutes, not hours. Advanced Seam Tracking: The system can automatically find and follow the weld joint, compensating for part misalignment or thermal distortion. Quick-Change Tooling: Switch fixtures rapidly to weld different components in the same cell.
