GH1000TC is 4 Axis economic type Lathe CNC Controller1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Scanning Function & Auto Tool Setter/Probe

CNC 4 axis lathe cnc controller


GH1000TC is 4 Axis economic type Lathe CNC Controller1)ATC function: Electric Turret/Binary Turret/Servo Turret/Special Turret 2)Threading Cycle: Following Mode/Interpolate Mode 3) Scanning Function & Auto Tool Setter/Probe
Send Inquiry

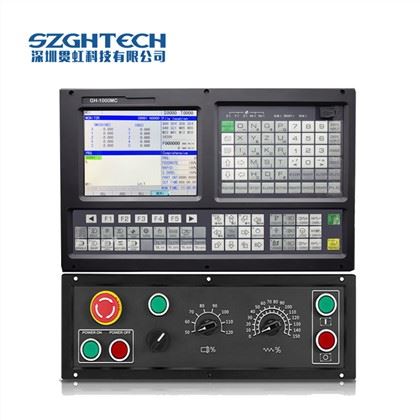

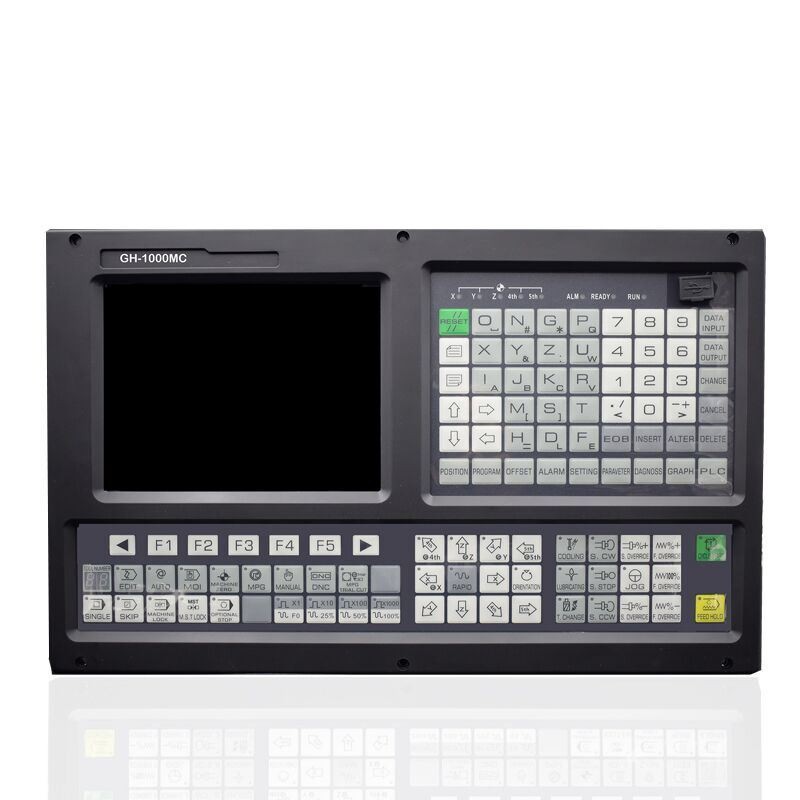

4 Axis Lathe and Turning CNC controller with new  control panel ARM+DSP+FPGA usb cnc complete kit

QQ20210507134718


01

Number of control axes

4axes (X, Y, Z, A)

Minimum programming

0.001mm

Maximum programming

± 99999.999mm

Top speed

30m / min

Feed speed

0.001-15m / min

Manual continuous

One axis or simultaneous multi-axis

Interpolation method

Straight line, arc, thread interpolation

Tool offset

Length compensation, nose radius C compensation

Spindle functions

Gear, dual analog control, rigid tapping

Handwheel functions

Panel type, plug-in hand-held

Screen saver function

Screen saver function

Communication function

RS232, U disk interface

Compensation function

Knife compensation, between compensation, screw compensation, radius compensation

Program editing

Male / English, relative / absolute programming

Limit function

Software limit, hardware limit

Pre-reading function

Short line preprocessing 10,000 lines

Password protection

Multi-level password protection

Input and output

I / O point 24X24

PLC programming

The user is free to design PLC function

Acceleration and deceleration control

Linear acceleration and deceleration, the number of additions and subtractions

Encoder lines

Any setting

User macro program

Yes

Electronic gear functions

Yes

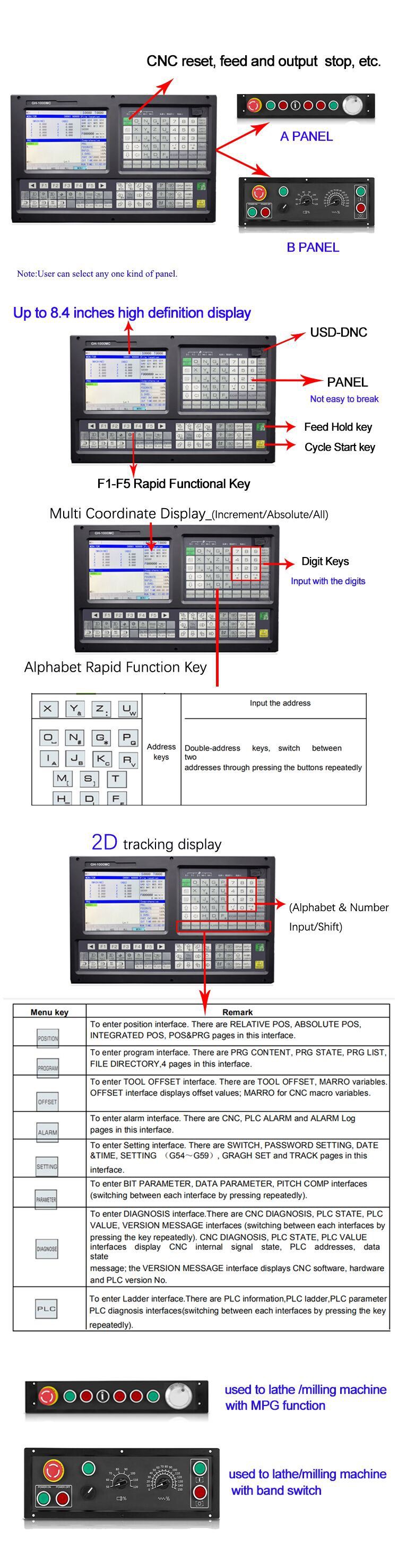

Vice-panel

A-type panel with hand wheel; B band band switch

Applicable machine tools

CNC Lathe & Turning Machinery and specially automatic equipment


Control axis:
*  Control axis: 3-5 axis (X, Y, Z,A,B)
*  Interpolationaxis: Any 3 axis linear interpolation , any 2 axis circular interpolation
*  Position command range:

Spindle axis functions:
*  Two channels 0V ~ 10V analog voltage output, support double spindle control
*  Spindle encoder: encoder lines can be set (100 p/r ~ 5000p/r)
*  Encoder and spindle’s transmission ratio: (1 ~ 255):(1 ~ 255)
*  Spindle ration: 50% ~ 120% eight stages real-time tunning in total

Tool functions:
*  Tool length compensation
*  Tool point radius compensation (C type)

PLC functions:
*  Two levels PLC programming, operation speed is 1.5μs/ step basic instruction; 4700 steps mostly, the cycle of the first level programming is 8ms.
*  Support PLC warning and PLC alarm.
*  Support multiply PLC programming (mostly 20), the current PLC programming can be chosen.
*  45 kinds of commands (10 kinds of basic commands, 35 kinds of function commands)
*  I/O unit input/output: 32/32

Related products：
1.CNC Controller
2,Axis servo motor &driver
3.Spindle Servo Motor&driver
4,Rotary table


Application: CNC Lathe & Turning Machinery and specially automatic equipment


QQ20210701150818

QQ20210701150800



More Professional service in cnc system total products exporting field


FAQ

Q: What’s your after-sale service?

A: Our quality warranty period is one year. Any quality problem will be solved to customer satisfactions.

Q: How can we get a quote?

A: Contact us with specification: such as power ,torque ,application,axis etc.

Q: What's the trade term and payment term?

A: Amount less than $1000, 100% paid before production, more than $1000 can be negotiated!

T/T, Western Union, PAYPAL etc.


If you have another question, pls feel free to contact us as below
