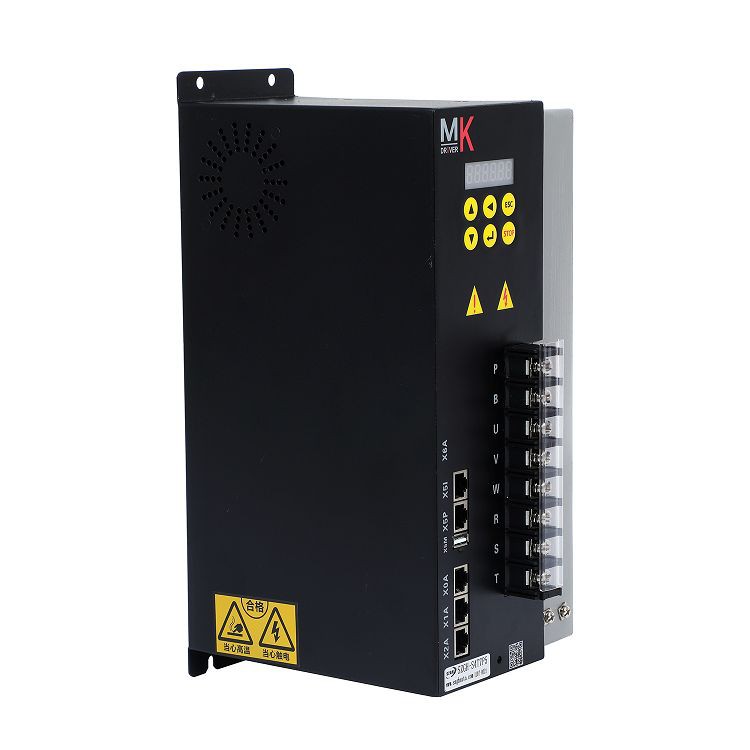

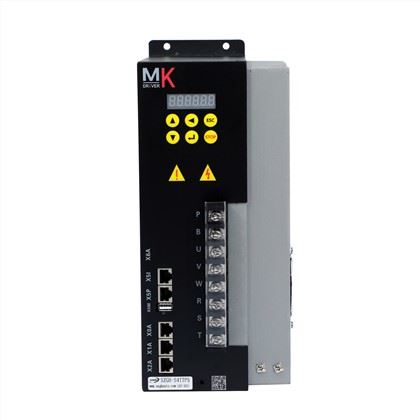

45KW Servo Spindle Driver


Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.
Send Inquiry

0X9A5570(001)


AC spindle servo system:

1.5KW to 132KW AC Spindle Servo System, Max Speed can reach to 15000rpm. It can support threading and tapping!



Spindle Servo System

1)Support Speed Mode: Analog Input(0~10V/±10V)/Pulse+Direction/CW+CCW/mBUS

    2) Support Position Mode: Analog Input(0~10V/±10V)/Pulse+Direction/CW+CCW/mBUS

    3)Support 2nd Encoder Input(X6A):Type of encoder: Photoelectric / Sincos /BISS modbus encoder

    4) Orientation Function:Digital Input/Output: NPN/PNP type

Input Power

Rated Voltage/frequency

Three-phase 380V/480V;50Hz/60Hz

Allowable Voltage range

+10%~-15%

Allowable Frequency Fluctuation

± 5%

Control Features

Control Mode

PWM Vector Control

Speed Adjustment Range

0.01~500Hz

Speed Stabilization Precision

± 0.1%

Acceleration/Deceleration time

0.05~3000Hz/s

Torque Control

200% Rated torque output;Torque precision ±5%

Position Control Precision

±1 Pulse

Braking Mode

Powered Braking

Overload Capacity

Twice Overload

I/Os

Digital Input

10 points , NPN or PNP(Optional)

Digital Output

6 points , NPN

Relay Output

2pcs ,DC30V/1A Or AC250V/1A

Analog Input

2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA
(Optional)

External Pulse Input

1 type ,ABZ phase pulse ,Pulse+Direction Or
CW (Optional)

Motor Encoder Input

1 type,RS422 TTL , Rotatry Connector(Optional)

Motor Encoder Output

1 pcs,RS42TTL ,Output Frequency Range:
0~1MHz

WorkingEnvironment

Operating Site

The product shall be mounted verticlly in the
electric control cabinet with good ventilation.
The product shall be installed in the environment
free from direct sunligh ,dust,corrosive gas,
sombustible gas,oil mist,steam and drip

Ambient Temperature

-10℃ ~ +45℃

Humidity

5~90%, not allow condensing

Altitude

0~3000Meters,derated above 1000m, the
rated output current shall be decreased by 1%
for every rise of 100m

Vibration

Under 20Hz:1G; 20~50Hz: 0.2G


16.8



]BVIN0(GRPITID%ZGU37~R5

_20210813174452

FAQ

Q: Do you support customized manufacturing?

A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.10-20 days if customized manufacturing.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample with sample price.


If you have another question, pls feel free to contact us as below
