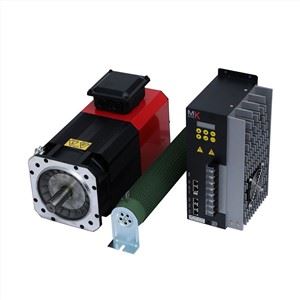

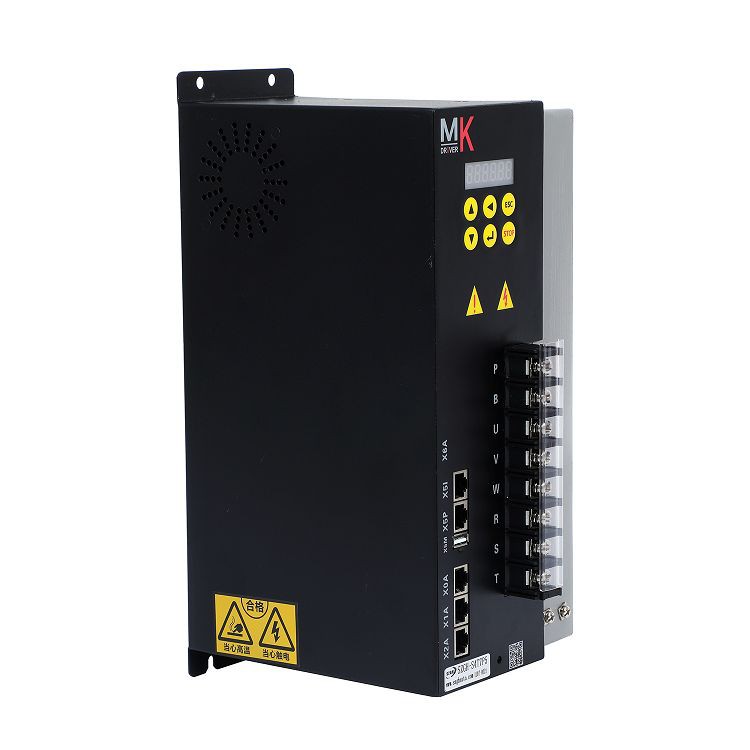

3.7KW Servo Spindle Driver


Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.
Send Inquiry


0X9A5570(001)

0X9A5601(001)

▶ Features:

Powerful Expansion Capability(Optional)


Spindle driver can be configured with many kinds of expansion modules,such as Digital terminal expansion modules, Analog terminal expansion modules, Encoder feedback divider output, RS485 ModBus RTU,CANopen, GSM/GPRS modules,digital display module, double position loop module interfaces.


And also it can also be customized manufactured according to the user's specific applications, conveniently connected to CNC controller, HMI, PLC and other control devices.


Safe & Reliable


Products comply with international standard,improved with CE certification. Setup mulitiple protection circuit,the comprehensive protection of safety equipment.


Input Power

Rated Voltage/frequency

Three-phase 380V/480V;50Hz/60Hz

Allowable Voltage range

+10%~-15%


Allowable Frequency Fluctuation

± 5%


Control Features

Control Mode

PWM Vector Control

Speed Adjustment Range

0.01~500Hz


Speed Stabilization Precision

± 0.1%


Acceleration/Deceleration time

0.05~3000Hz/s


Torque Control

200% Rated torque output;Torque precision ±5%


Position Control Precision

±1 Pulse


Braking Mode

Powered Braking


Overload Capacity

Twice Overload


I/Os

Digital Input

10 points , NPN or PNP(Optional)

Digital Output

6 points , NPN


Relay Output

2pcs ,DC30V/1A Or AC250V/1A


Analog Input

2 inputs, A0:±10V; A1: 0~±10V Or 4~20mA
(Optional)


External Pulse Input

1 type ,ABZ phase pulse ,Pulse+Direction Or
CW (Optional)


Motor Encoder Input

1 type,RS422 TTL , Rotatry Connector(Optional)


Motor Encoder Output

1 pcs,RS42TTL ,Output Frequency Range:
0~1MHz


Protection Function

Over-Voltage Protection,Low-Voltage Protection,Over-Current Protection,Over-Heat
Protection, module Protection,Overload Protection,Output Short-Circuit Protection,
Encoder's abnormal Protection


WorkingEnvironment

Operating Site

The product shall be mounted verticlly in the
electric control cabinet with good ventilation.
The product shall be installed in the environment
free from direct sunligh ,dust,corrosive gas,
sombustible gas,oil mist,steam and drip

Ambient Temperature

-10℃ ~ +45℃


Humidity

5~90%, not allow condensing


Altitude

0~3000Meters,derated above 1000m, the
rated output current shall be decreased by 1%
for every rise of 100m


Vibration

Under 20Hz:1G; 20~50Hz: 0.2G



16.1(001)

16.2

20210119100508f638db1644574756bc361fba8e4f6cae

20210119100512f45f2f66edff40adb05e79916dfd372c

2021011910051408fa774b887247b988421343478d4694

FAQ


Q: How long is your delivery time?

A: The general delivery time is 4-6 days after receiving your order confirmation. , if we have the goods in stock, it will only take 1-2 days.

Q: Do you provide sample ? Is it free?

A: If the sample is low value, we will provide the free sample with freight collect. But for some high value samples, we need to collect the sample charge.

Q: What is your term of payment?

A: 50% down payment before producing and 50% balance payment before shipping.

Q: Which payment form you can accept?

A: T/T, Western Union, PayPal etc. We accept any convenient and swift payment term.
