GH-13230AC is 2300W servo motor system , it is fast speed and high precision with low cost . It is 15NM torque and matching with bigger power servo motor.

Ac servo Motor 2.3KW 15Nm 1500RPM


GH-13230AC is 2300W servo motor system , it is fast speed and high precision with low cost . It is 15NM torque and matching with bigger power servo motor.
Send Inquiry

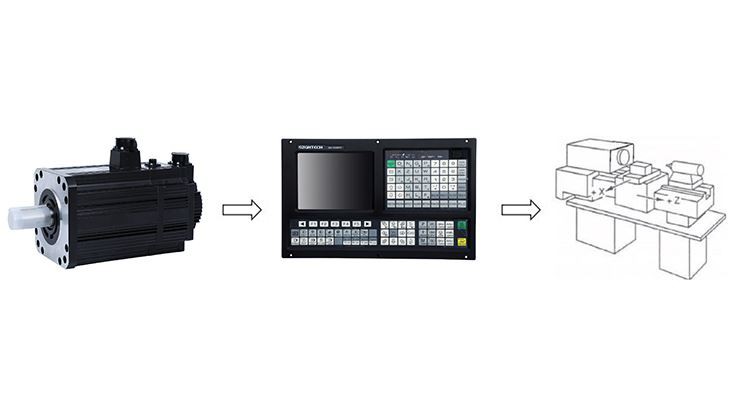

High speed and Torque Ac servo Motor 2.3KW  15Nm  1500RPM for Textile Machine Matched CNC  Controller

01

This is a popular type servo motor in China. It is widely used in Packaging , Printing, Textile and so on. Because of the high quality for life long used, it has won high reputation in market by our customers. We do want to build futher relationship with you .

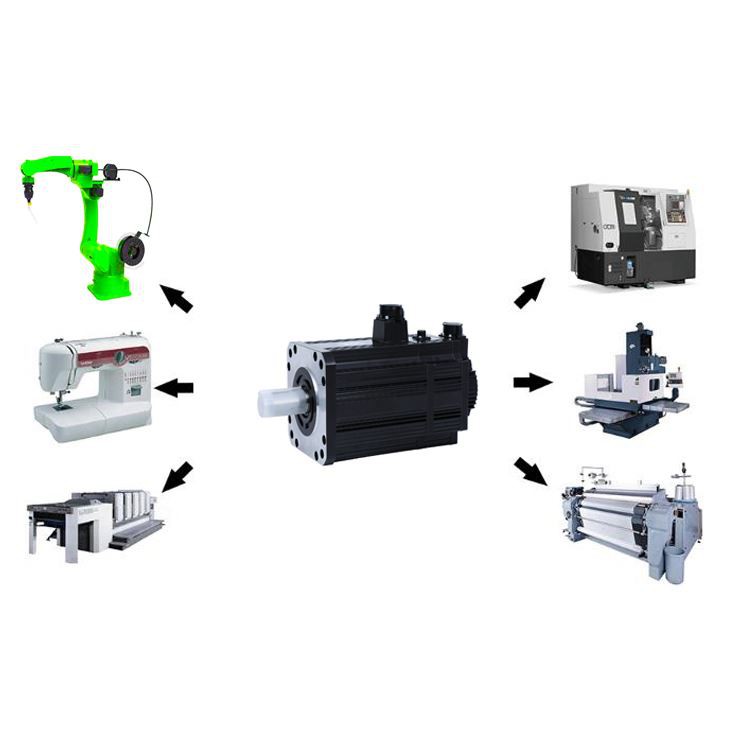

Application


CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment, robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.


Features


GH-13100CC is 1KW ,4NM and 2500RPM servo motor, it is low cost , and very general-purpose type. Imported feedback components, original imported low-noise motor.

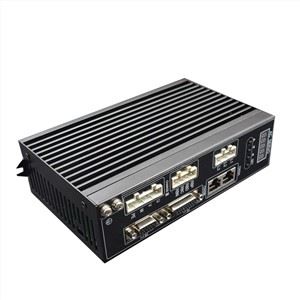

The are match servo driver, GH-SD2026,GH-201,GH-301, that matching for 1KW servo motor.


There is also one dual servo driver,GH-302,that can control two pcs of 1KW servo motors synchronously.


Related Model : GH-08100CC , GH-09100CC , GH-10100DC , GH-13100AC

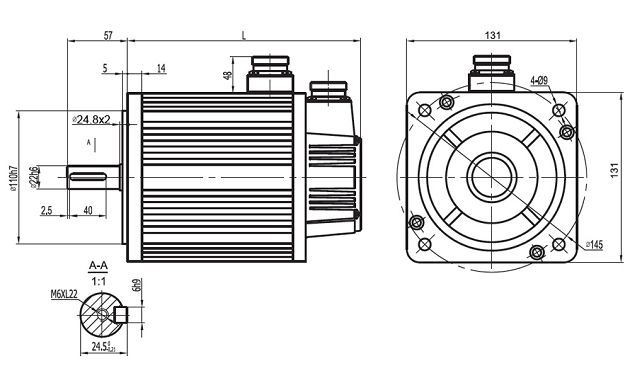

Motor Model SZGH-13230AC
Rated Power(KW)2.3
Rated Voltage(V)220
Rated Crrent(A) 2.5
Rated Speed(RPM) 1500
Rated Torque(NM)15
Peak Torque(NM)30
Voltage Constantv10r/min 56
Torque Coefficient(NM/A)1.58
Rotor Inertia（Kg.m²）2.77*10
Line-Line Resistance（Ω）1.1
Line-Line Inductance(mH) 4.45
Machanical Time-Constant(Ms)4.05
Encoder Resolution(PPR) 2500
Insulation Class Class B
Safety ClassIP65
The Operating of Evironmental Condition Temperature:-20℃~+45℃ Humidity Below 90%RH(No drawing)
Weight(KG)12.6




Why choose us

We are one of the leading professional server and drive manufacturers in China.

We have been in this industry for nearly 10 years. More importantly, we have our

own factories and our product costs are competitive. At the same time, we attach

great importance to quality control. Each product will be carefully tested before

assembly. If you need any help during use, you can contact our technical department,

and we have a professional technical team to answer you.
