GH-11180DC specailly design with bigger and beautiful contour, large load , long-term continuous working in rated working mode.

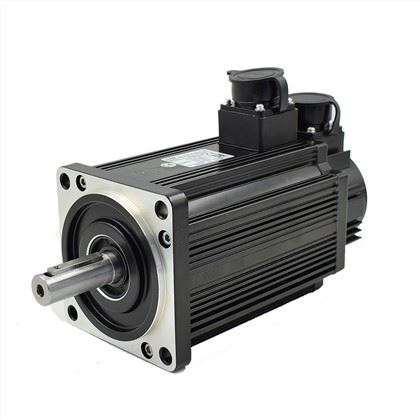

1 .8kw AC Servo Motor And Driver


GH-11180DC specailly design with bigger and beautiful contour, large load , long-term continuous working in rated working mode.
Send Inquiry


Single-Phase AC Servo Motor 1.8kw 6NM 3000rpm AC Servo Motor And Driver For CNC Controller

Hbd61397a57ea4b18a247b7a84f515431p

Features

GH-11180DC is 1800W servo motor system,6.0NM,3000RPM. specailly design with bigger and beautiful contour, large load , long-term continuous working in rated working mode.



Motor Model SZGH-11180DC
Rated Power(KW)1.8
Rated Voltage(V)220
Rated Crrent(A) 6.0
Rated Speed(RPM) 3000
Rated Torque(NM)6
Peak Torque(NM)18
Voltage Constantv10r/min 60
Torque Coefficient(NM/A)1
Rotor Inertia（Kg.m²）0.76*10
Line-Line Resistance（Ω）0.81
Line-Line Inductance(mH) 2.59
Machanical Time-Constant(Ms)3.2
Encoder Resolution(PPR) 2500


Application

It is widely used in various processing machinery and automation equipment such as metal cutting machine tools, laser processing machine tools, woodworking machine tools and so on.

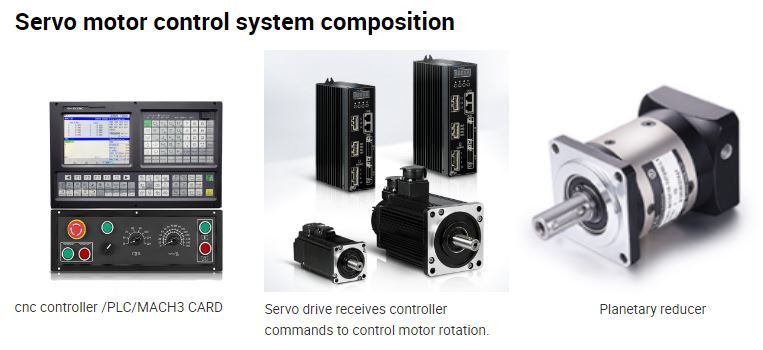

Servo System

1)With Tamagawa encoder: Incremental(2500PPR/Absolute Servo Motor(17bits/23bits)

2)Position Control:Pulse+Direction,Modbus: RS485/EtherCAT/Canopen/PowerLink


Servo motor advantages:

1.Operate Steadily 2.High Precision

3.Big Power Range(50W-11KW)

4. Strong Overload Resistance 5.High Speed and Excellent Performance


8(001)

9(001)

10

11

_20210817162726

CAD)3HYEEBD$KJAEXDXD_J2

Hbc8c73dbe8b84a958399e641043246d9S

]BVIN0(GRPITID%ZGU37~R5

H6aada374ce7d45d883021e74cc0b9923f

_20210813174452





FAQ

Q: May I know what’s the nearest airport from your company?

A: First shenzhen Airport,,then guangzhou or huizhou airport,welcome to visit us.

Q: When can I get the quotation?

A: We usually quote within 3 hours after we get your inquiry. If you are very urgent to get the price, please tell us so that we will regard your inquiry priority.

Q: What about the lead time for mass production?

A: 6-8 working days for mass production.It depends on your quantity,and we will try our best to meet your needs.


If you have any other question about our 1 .8kw 6NM AC Servo Motor And Driver , pls feel free to contact us as below


Send Inquiry

FAQ

The following are the common questions we have collected about CNC Controller.
1. Q: What services do you provide?
+
A: We offer one-stop service. We can customize the most suitable processing solution based on your ideas and product drawings. We have partnerships with major shipping companies such as DHL, FEDEX, and UPS to ensure timely delivery. Products can be delivered to you within 3-6 business days.
2. Q: What can you do for CNC machine tool retrofit and upgrade?
+
A: We can provide a complete CNC system. Our controller supports ATC and PLC and runs G-code. Support multiple languages, Russian, Spanish, English, Chinese, etc.The kit includes the controller, spindle servo motor and driver, servo motor drivers for each feed axis, and all standard cables, user manuals, and wiring diagrams. Our CNC control system is fully connected before shipment and tested 3-5 times for plug-and-play operation.
3. Q: What is your after-sales service like?
+
A: Our professional after-sales engineers provide 24-hour, one-on-one, free service. You don't have to worry about any after-sales issues.
4. Q: What optional accessories are available for CNC machine tools?
+
A: You can choose different accessories based on your machining needs. CNC Lathe:Servo turret, hydraulic chuck, manual chuck, Parts Catcher, Tailstock，guide bush,Flying knife disc,Tailstock,living tool,bar feeder, chip conveyor, etc. CNC Milling Machine: Fourth and fifth axis CNC rotary tables,Tailstock,BT30/BT40 holder, tool setters, probes, etc.
5.Q: How do you maintain the machine?
+
A: You must receive safety training before use. Regularly clean chips, check the air supply/oil pressure, lubricate the guideways, and inspect tool wear.
